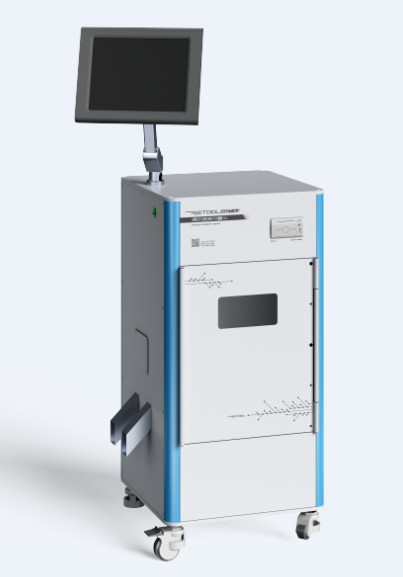

220V Filter Rod Machine Capsule Roundness Measuring Tester 5-6bar

Capsule roundness measuring tester Automatic detection of maximum diameter, minimum diameter, bubble, abnormity, electro

Chengdu Retool Science & Technology Co., Ltd., as a well-known professional manufacturer of physical test equipment for tobacco in China, has a development history of three decades. Chengdu Retool Technology lndustrial Co., Ltd. was founded in 1996, and Chengdu Retool Science & Technology Co, Ltd. was founded in 2015 after shareholding reform, and was successfully listed in the national EME share transfer system in March 2016.As a nationally recognized outstanding high-tech enterprise, the company has a strong technical basis and advanced equipment and is a base for researching and manufacturing optics-machinery-electronic-computer-automatic apparatus and equipment. All the product series developed by the company has been approved by the National Tobacco Monopoly Bureau, physical test equipment of the company have been widely used by domestic and foreign tobacco factories, filter plants and tobacco quality supervision departments at all levels, and you will be fully guaranteed with high product quality and cost performance. The company specializes in physical parameter test equipment for various cigarettes/filter rods, on-line automatic sampling systems for cigarettes/filter rods, test equipment for various raw materials and auxiliary materials, test equipment, and automatic equipment for various new materials including filter capsule products for tobacco. The company will fully and faithfully follow the IS019001 quality management system, the ISO24001 environmental system and other standards to provide products in accordance with national and industrial standards, and all key product components are from international famous brands to make sure that the comprehensive quality of products has reached the international level. The company promises the clients with supreme product quality, installation and debugging, personnel training, after-sales services, etc. Retool Co., Ltd. will always be dedicated to product quality, services, and innovation and will strive for excellence. With the continuous development of the tobacco industry, Retool Co., Ltd. will insist in researching and developing higher-level tobacco physical test equipment and automatic equipment for tobacco industries at home and abroad, with advanced technologies and stable quality as the goal. We would like to cooperate with you sincerely to win the splendor prospects in the future!

The tester can provide you with the roundness of blasting beads, Automatic detection of maximum diameter, minimum diameter, bubble, abnormity, eccentric core and other appearance defects can improve the detection level of bead blasting products. It is a new type of advanced testing instrument for the detection of bead burst strength in tobacco industry.

Features and functions

1. Automatic measurement of roundness, maximum diameter and minimum diameter of smoke blasting beads; Automatic detection of the appearance defects of smoke explosion beads, common defects include bubbles, abnormity, eccentric core, etc.
2. Automatic feeding, sorting, photographing and NG sorting, no manual intervention, simple operation;
3. Mechanical rotation process to realize 360-degree comprehensive inspection;
4. Each bead can provide up to 40 pictures from different angles, and the detection speed is not less than 30 pictures per minute;
5. The measurement data can be backed up and exported through USB interface;
6. Adopt menu operation, friendly man-machine interface, easy to learn and use.
7. Adopt 15 inch industrial touch screen, based on windows system.
8. The appearance defect detection function of the burst bead can be optional. The common defects include bubble, irregular shape, off-core, etc.

Main performance index

1. Sample diameter range: medium 2.5- medium 5.0 (tooling needs to be changed)
2. Storage bin capacity: m 1000 pieces
3. Testing accuracy: ± 0.02mm
4. Detection speed: m30 pieces/minute
5. Number of single photos: w40 (settable)

Using environment requirements

1. Working environment temperature: +5℃+40℃
2. Working environment humidity: 50%-60% (best);70% (maximum) without condensation.
3. Power supply: 220v 10%; 50Hz ± 5%
4. Gas source: 5-6bar
5. Dimensions: 540 x 540 x 1400mm high
6. Avoid direct sunlight and other strong light.

Why choose us?

1. High degree of automation: The equipment adopts advanced automation technology, which can realize automatic production, improve production efficiency and reduce labor cost.

2. High precision: The equipment has a high precision production process, to ensure that the production of filter rods meet the specifications and requirements.

3. Cost saving: Compared with traditional manual production, the equipment can save a lot of manpower and material costs.

4. High reliability: The equipment uses high-quality raw materials and parts to ensure the reliability and stability of the equipment.

5. Wide applicability: The equipment is suitable for a variety of specifications and types of filter rod production, can meet the needs of different customers.

Our advantages

1. One of the famous companies in the industry.

2. More than 25 years of experience in product development.

3. With 85000 square meters of production workshop, production capacity is strong.

4. The quality of products has won the praise of domestic and foreign customers.

5. There is no need to reassemble the device after receiving it, and there is a video guide for debugging and use.

AFTER Sales service

1. Video guide for debugging and use.

2. One-year warranty.
