| Place of Origin: | CHINA |
| Brand Name: | RETOOL |
| Model Number: | FC-II |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Cutting Speed: | 2000rpm | Mode: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Warranty: | One Year |
| Highlight: | 2000rpm cutting Cigarette Production Machine,2000rpm cutting tobacco equipment,200 hoppers tobacco equipment |
||

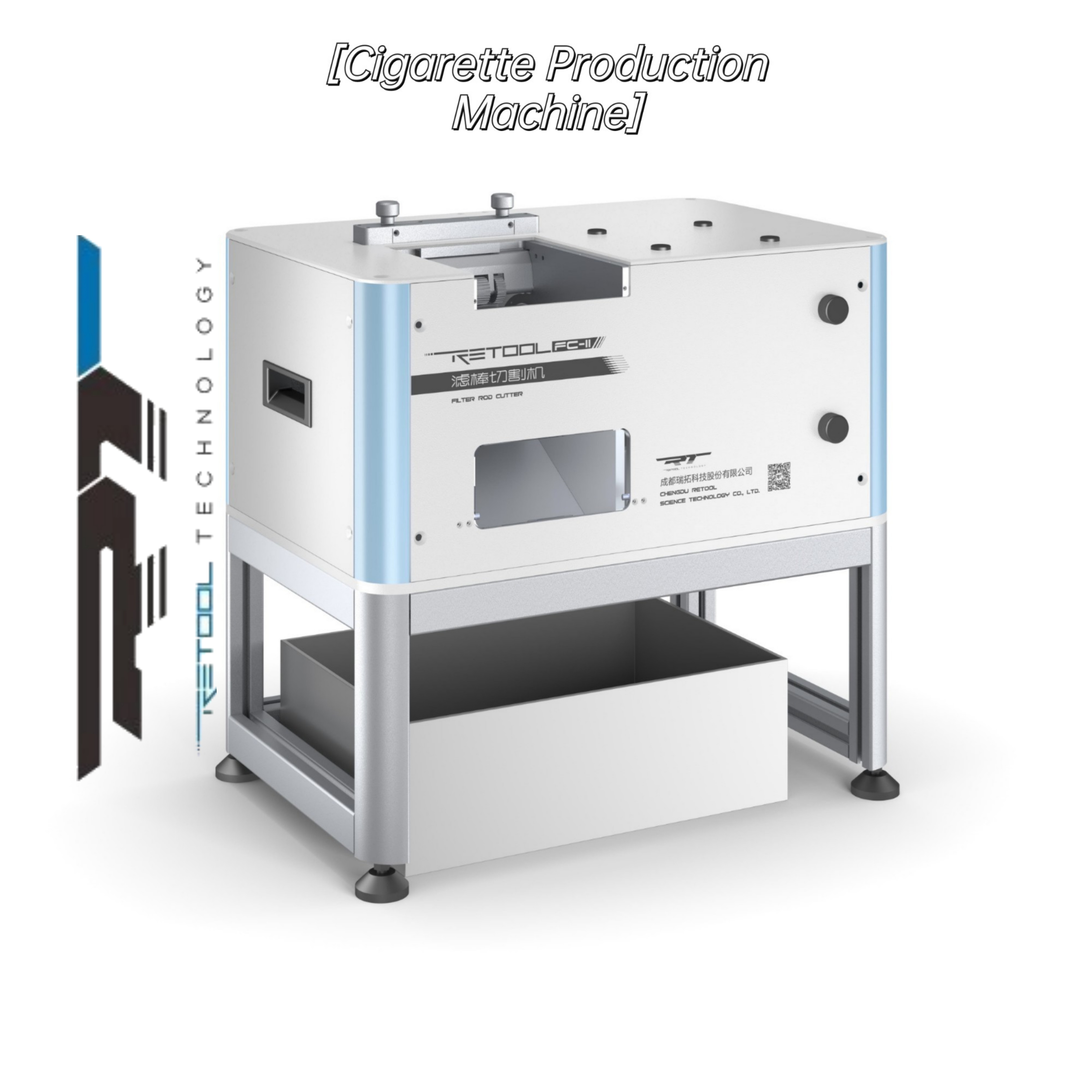

Electric Filter-Rod Cutter Cigarette Production Machine Fully Automatic Mode High Speed
Performances and features of the product
As a professional tobacco equipment, our machines have the following main features, have absolute advantages,including:
1. It is used for breaking and cutting the filter rod, dividing the filter rod into two or other segments (to be customized);
2. Small occupied space, simple operation, convenient use and stable performance;
3. One-key start/stop, which is easy to operate;
4. Batch cutting, fast working speed;
5. The cutter is hidden inside the machine, so there is no potential safety hazard, and it can be placed on the production site to work;
6. It has emergency stop button, and automatic door-opening stop function, high safety;
7. The cross section ofthe cut sample is flat;
8. Suitable for cutting acetate fiber filter rods, polypropylene fiber filter rods and polylactic acid fiberfilter rods;
9. Advanced design integrating feeding, cutting, separation and other processes;
10. The filter rod length has a wide compatible range, and the cutting length can be adjusted;
Main Key technical indexes
| Blade size | 80 x 10 x 0.3mm in the middle |
| Cutting speed | 2000rpm |
| Error of cutting position | ± 0.5mm |
| Cutting position range | the position of filter rod is 45 〜75 mm |
| Capacity | 200 hoppers |
| Operation mode | one-button automatic operation |
| Material feeding and discharging mode | automatic |
| Adjustment mode of cut-off position | manual |
| Cutting position error | ± 0.5mm |
| Minimum cutting speed | 150 pieces/minute |
| Cutting mode |
All four, all six, and other filter rod cutting modes can be flexibly customized according to the requirements |
| Sample length range | 90 ~ 150 mm |
| Circumferential range of sample | 24 ~ 26 mm (other specifications need to be customized) |
| Suitable sample types | Acetate fiber filter rod, polypropylene fiber filter rod, polylactic acid fiber filter rod, etc. |
AFTER Sales service
Once you purchase our products, we will provide professional after-sales service, including but not limited to
1. Video guide for debugging and use: We will provide the operation video of the machine installation and use, so that you can operate completely without doubt
2. One-year warranty: Our product warranty lasts for one year, during this period, you have any questions, you can contact us at any time
3. Our after-sales staff are professional and online all the time
