| Place of Origin: | CHINA |
| Brand Name: | RETOOL |
| Model Number: | CPI-A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Customized: | Yes | Resolution: | 1 Pa |
|---|---|---|---|
| Condition: | New | Weight: | 22kg |
| Power Supply: | AC220V 50Hz | Humidity: | 60±5%RH |
| Highlight: | CFO gas flow Cigar Machine,Cigarette Machine Settable Sample Suction Time,CPI-A Cigarette Machine |
||

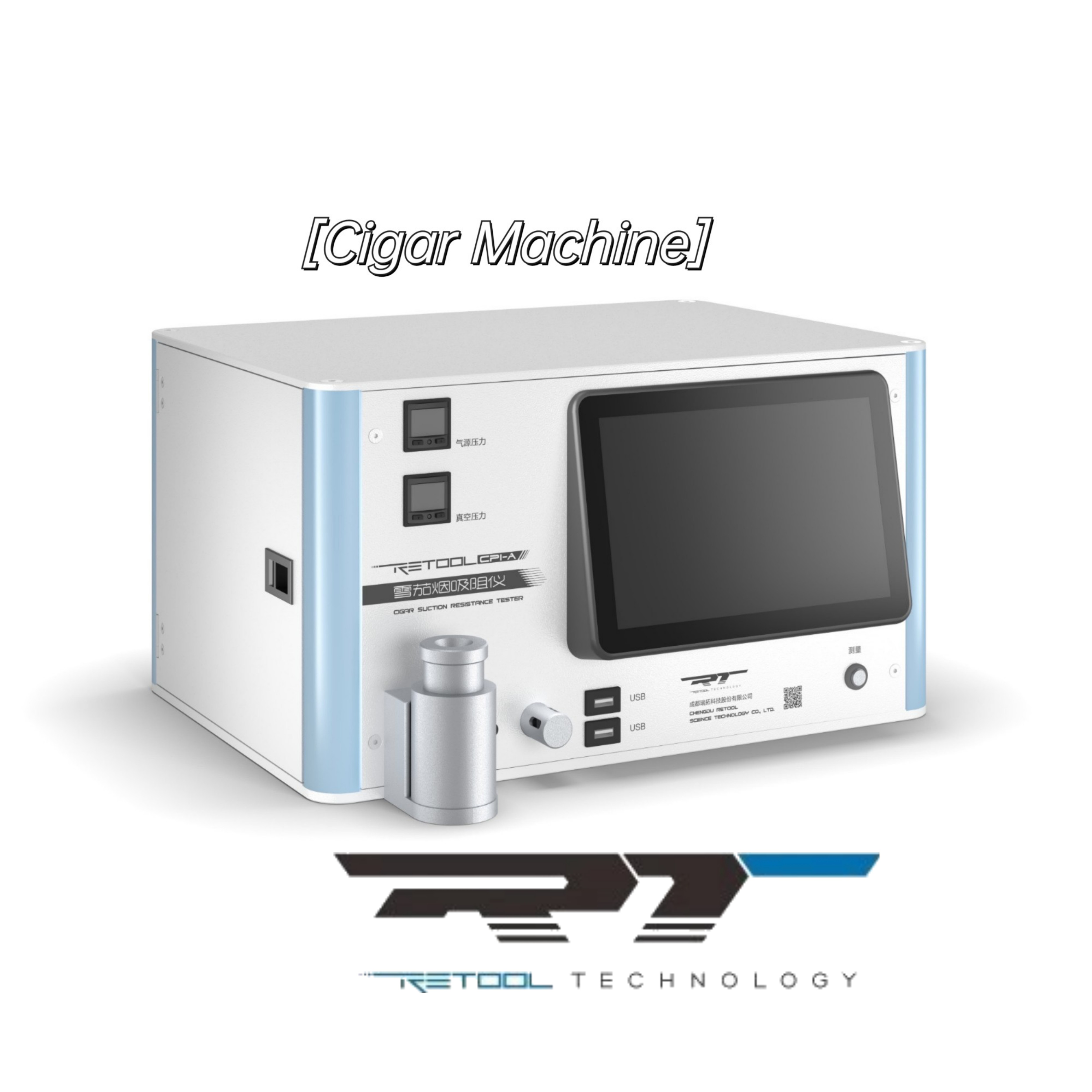

Customized Cigar Machine AC220V Settable Sample Suction Time Machine-Made Cigars
Functions and characteristics of instruments
1. It is suitable for the smoke resistance detection offinished products and tobacco embryos of handmade cigars/machine- made cigars;
2. The instrument adopts CFO gas flow constant current device to ensure the stability of gas flow;
3. The instrument adopts imported high-precision air pressure sensorto ensure the detection accuracy ofthe instrument;
4. The instrument is imported into latex tube with high elasticity to ensure the effective package of cigarettes;
5. The instrument adopts replaceable test heads, and cigarettes with different circumferences can be compatible in a wide range by replacing the test heads;
6. The instrument has built-in temperature and humidity sensor to realize real-time monitoring ofthe detection environment;
7. The built-in calibration method ofthe instrument is adopted to realize one-key calibration, and the operation is simple and convenient;
8. Graphical operation interface, industrial flat touch operation, easy to learn;
9. The display unit can be switched to meet the needs of different users;
10. Support data storage, query, import, export, data printing, USB interface and network interface.
11. The instrument has internal dual calibration gas path, only one key can complete the calibration function.
Technical Specifications
| Applicable samples | handmade cigars/machine-made cigars, tobacco embryos orfinished products |
| Specifications | L: 90~210mm |
| Diameter | 12~23mm |
| customized | yes |
| Suction constant current | 17.5±0.1 ml/s |
| Range | 0 ~ 2500 Pa |
| Measurement value display accuracy | 10pa |
| Resolution | 1 pa |
| Sample suction time | settable |
| Size | 430mm(L) x 480mm(W) x 360mm(H) |
| Weight | 22kg |
Working environment requirements
| Working ambient temperature | +10°C to +40°C (recommended ambient temperature is 22 ± 2°C) |
| Humidity | 60±5%RH |
| Power supply | AC220V ±10% 50Hz± 5% |
| Gas source requirements | Positive pressure ≥0.5mpa,flow ≥0.3m3/min, air source should be dried and filtered |
packing and delivery
Our products comply with strict packing and delivery standards. We will adopt the most suitable transportation methods, including sea transportation, air transportation and land transportation
