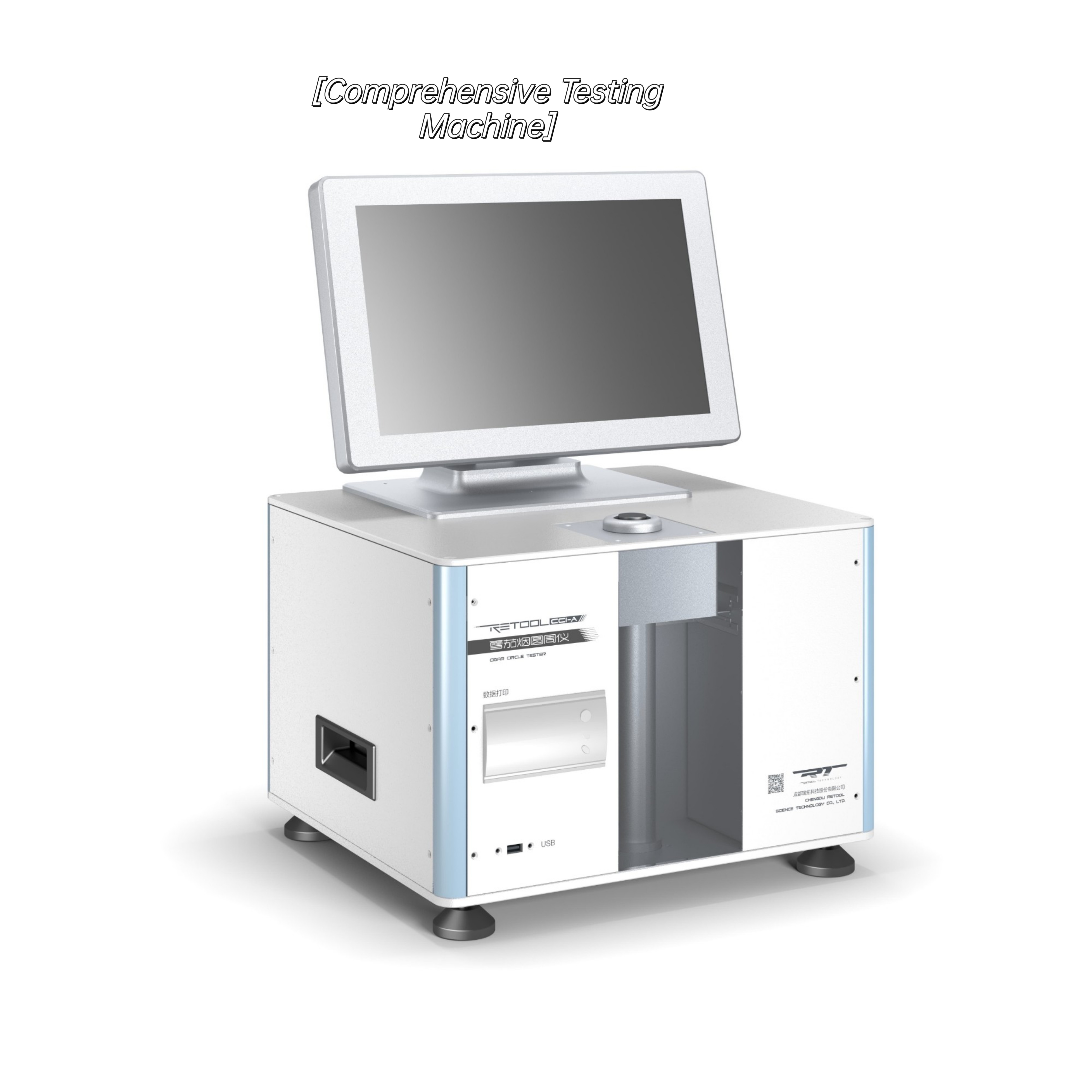

RETOOL Touch Operation Cigar Filter Rod Circle Tester 360 Degrees

Cigar Circle tester industrial flat touch operation Support data storage, query, import and export, data printing

The tester is a kind of instrument developed for the actual needs of the tobacco industry to detect the physical index parameters of cigars. It is used to detect the circumference and roundness of a section or multiple sections of cigars. It is applicable to the sampling inspection of cigars. The industrial computer is used for human-computer interaction, with beautiful interface and strong data processing ability. The clamping rotating mechanism can realize the measurement of cigar samples with various diameters and length specifications without changing parts. The use process is simple and convenient.

Performance and characteristic

1. Suitable for measuring the circumference and roundness of cylindrical handmade cigars or machine-made cigars;
2. The range of sample circumference compatibility is large, the measuring position can be set, and the circumference and roundness of all positions can be detected.
3. Accurate measurement with CCD laser sensor;
4. 360-degree rotation sampling is realized on the circumference of the sample, and the measurement result is more accurate;
5. The new cigarette holder is adopted, which is suitable for cigarettes with various diameters and ensures stable and reliable measurement.
6. Automatically adjust the position of the positioning platform after setting parameters of the instrument;
7. The instrument adopts manual feeding and manual blanking;
8. Compact structure and small floor area;
9. Graphical operation interface, industrial flat touch operation, easy to learn;
10. Support data storage, query, import and export, data printing, USB interface, network interface.
11. The circular roundness of the section at one or more locations of the same sample can be measured by using variable base location. The whole process runs automatically, without intervention, easy to use.

Working environment requirements(Avoid direct exposure to the instrument by strong light sources such as sunlight)

1. Operating environment temperature: +10℃ to +40℃ (Recommended ambient temperature is 22 ± 2℃)
2. Humidity: 60±5%RH
3. Power supply: AC 220V ±10% 50 Hz± 5%

Technical indicators

1. Sample diameter range: 12~23mm
2. Sample length range: 90~210mm
3. Measuring position: the whole length position can be adjusted based on the end face.
4. Sampling position: 360 degrees
5. Resolution: 0.005mm
6. Measurement accuracy: ± 0.1 mm
7. Adjustment range of platform: 0~120mm
8. Overall dimension:420×380×600 mm
9. Weight:21kg

Our advantages

1. One of the famous companies in the industry.

2. More than 25 years of experience in product development.

3. With 85000 square meters of production workshop, production capacity is strong.

4. The quality of products has won the praise of domestic and foreign customers.

5. There is no need to reassemble the device after receiving it, and there is a video guide for debugging and use.

AFTER Sales service

1. Video guide for debugging and use.

2. One-year warranty.
